Our Products

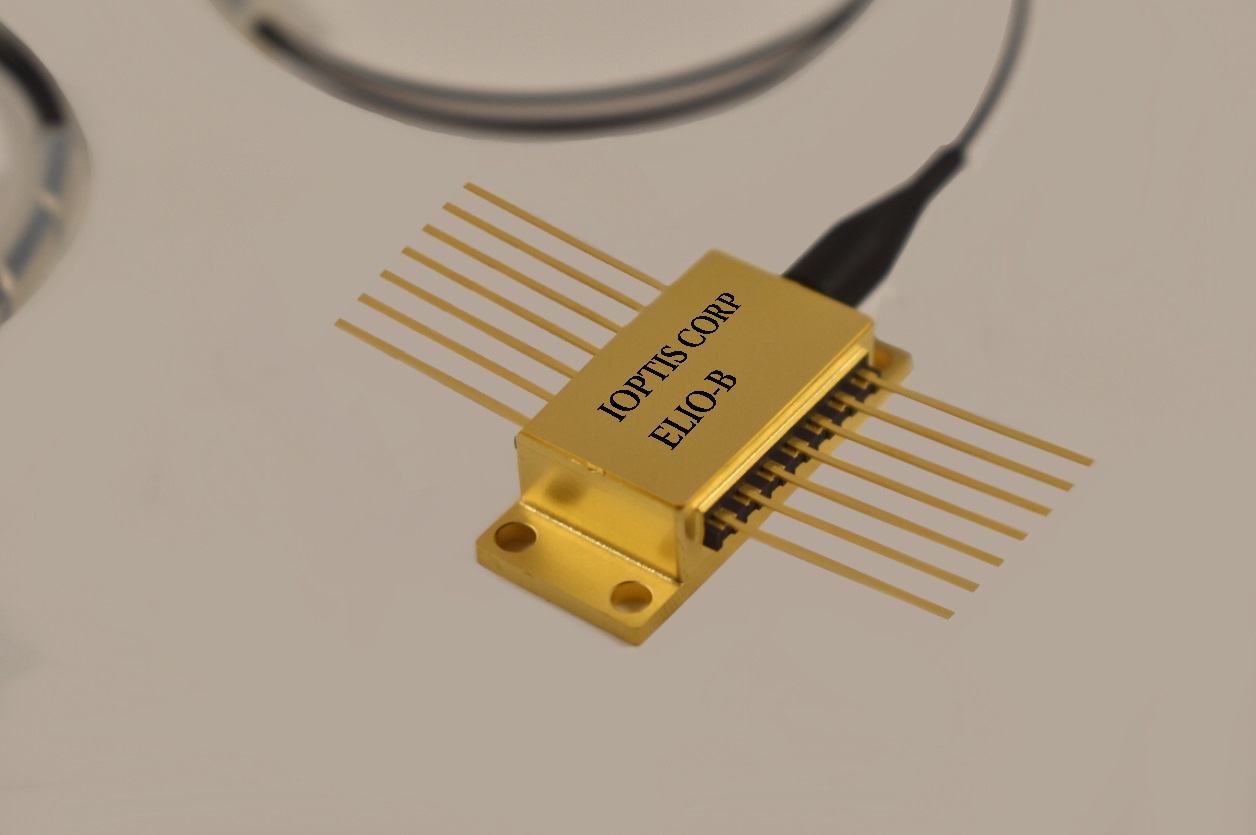

ELIO-B – Butterfly Package Laser
The ELIO-B is a narrow linewidth laser in a compact 14-pin butterfly package. It provides ultra-low noise operation with excellent wavelength stability and high coherence.
- Wavelength range: 1510–1590 nm
- Linewidth: <3 kHz
- Output power: >10 mW
- Integrated TEC and thermistor
- Thermal Tuning Range (continuous, mode hop free) > 50 pm
- Thermal Tuning Range (discontinuous) > 250 pm
- Fast Frequency Modulation Bandwidth > 1 MHz
- Fast Frequency Modulation Range > 500 MHz

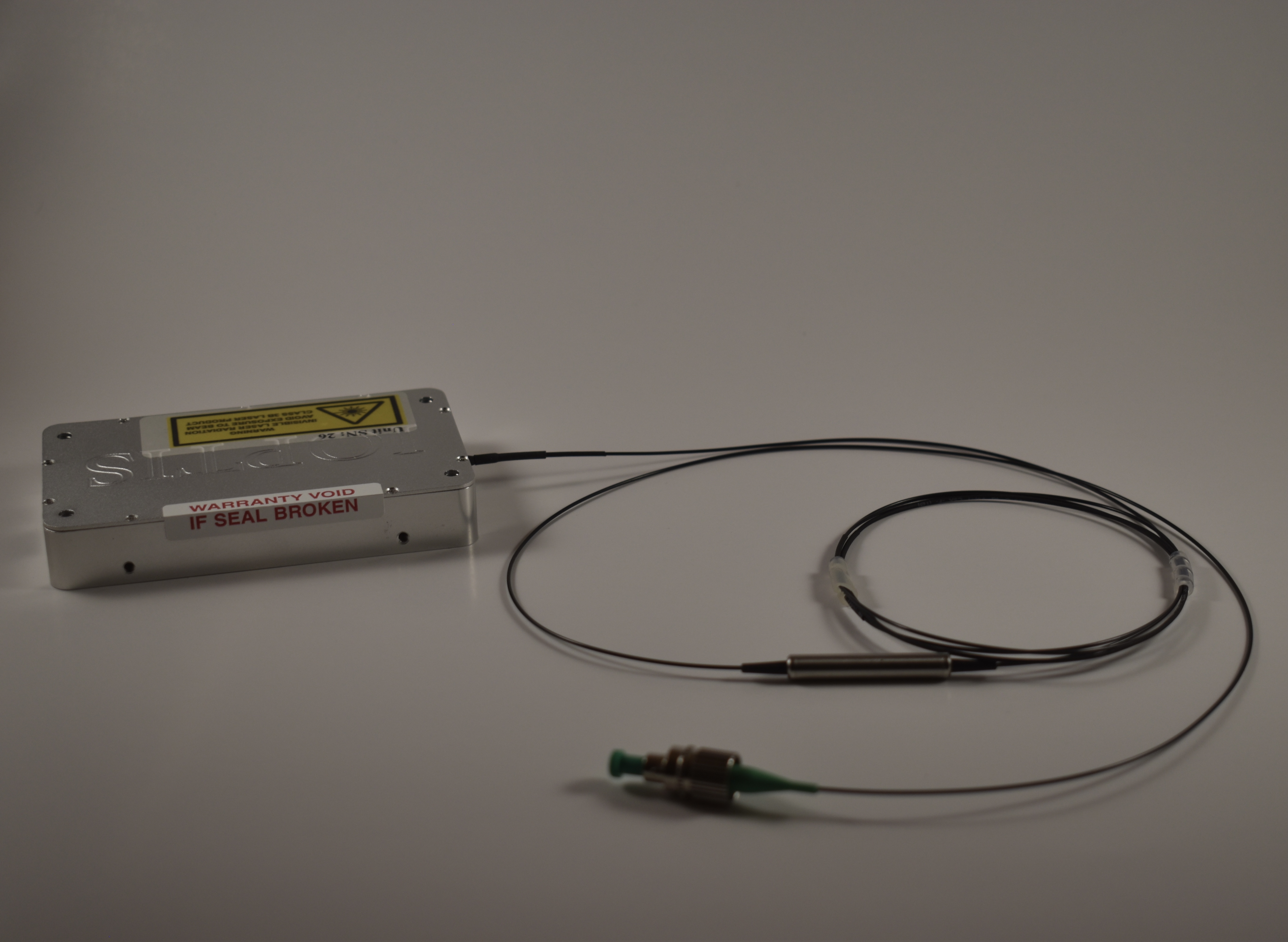

ELIO-M – Modular Laser System
The ELIO-M is a turnkey laser system providing fully integrated thermal, current, and modulation control. Designed for laboratory and OEM use, it offers plug-and-play simplicity.
- Same optical performance as ELIO-B with full housing and drivers
- Modulation input: DC to 35 kHz
- Compact size, low power consumption
- USB and RS-232 control options
Contact us for technical datasheets or custom configurations.
